Forza 60 & 60B Projection Attachment

Achieve your further perspective

Moving towards bringing more comprehensive yet creative experiences to all of our customers,
Nanlite enhances our Forza 60/60B by developing a set of brand-new projection attachments.
Combining this exciting accessory, the accessories system for Forza 60/60B will meet the
ever-changing demands of creatives and their light shaping needs.
Video

Brand-new optics design

To achieve the highest output, Nanlite developed a new complete
optical system specially for the Forza 60/60B’s COB.

The illumination of Forza 60 with PJ-FMM-19 equal to

17times

light only

3times

with reflector

1.4times

with Fresnel in spot 10°

Expertly crafted details

The aspherical lens that correct aberrations have been added to the optical system, whilst an optical antireflective coating and adding texture to internal housing, ensure the optical system provides users with a superior finish to the lighting effects.

Uniformity

1.6

Distortion

Color temperature
accuracy

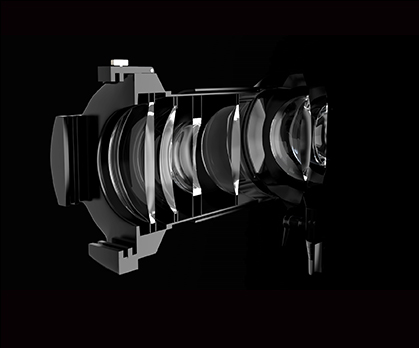

Aspherical lens

Eliminate aberration
effectively, increase uniformity,
reduce distortion.

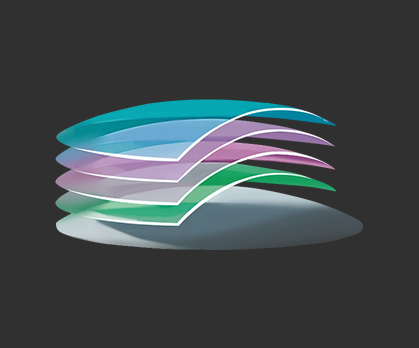

Optical antireflective coating

Increase luminousness
and reduce the shift of color
temperature.

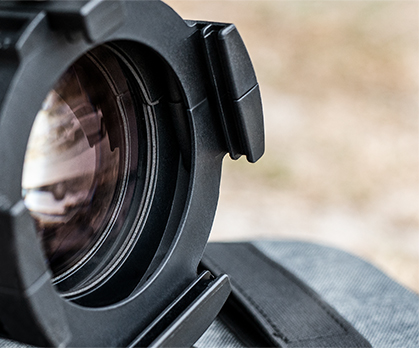

Internal housing texture

Reduce edge dispersion,
making the edge sharper.

Extra Durability & Heat Dissipation

Nylon’s light weight, robust quality plus low heat absorption characters makes it
a perfect material for the projection attachment - it gives users the ability to easily handle
the projector after use, and makes traveling with the accessory easier.

Your Choice Shaping Light

Nanlite always listens to customers voice
and with this we have ensured our projection
attachment offers flexibility and ease in
shaping lighting, framing layers and adding
color. With shutters, GOBO, 18-bladed iris
and Gel frames included make the projection
attachment a must have accessory for Forza 60 owners.

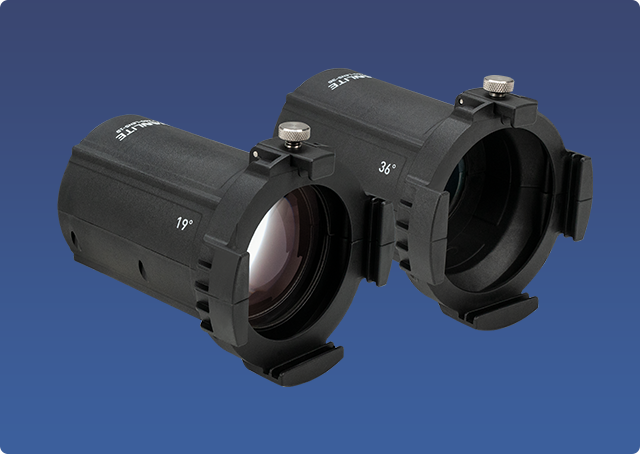

Interchangeable Lens

Adjust the spot size in maximun lighting output

* Note: One kit includes 1 lens only,
19° or 36°,the lens could buy optional.

PJ-FMM-AI (Optional)

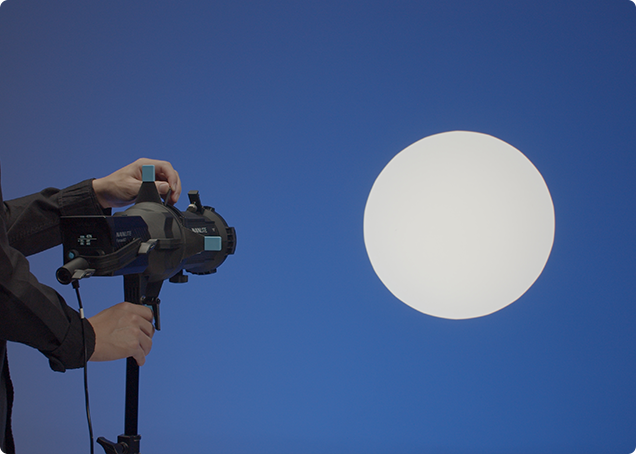

18 Bladed Adjustable Iris diaphragm

Control the size of the light spot while maintaining a round shape.

GOBO - Project pattern, adding texture to the background and adding layer to the picture.

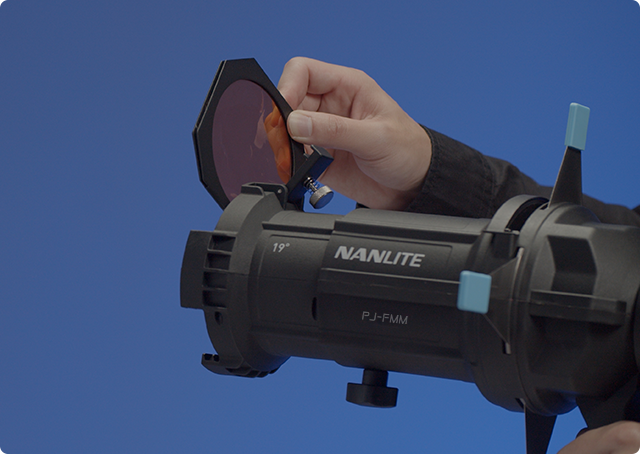

Gel Frame - Get lighting colors via gels and to add colors for the shooting

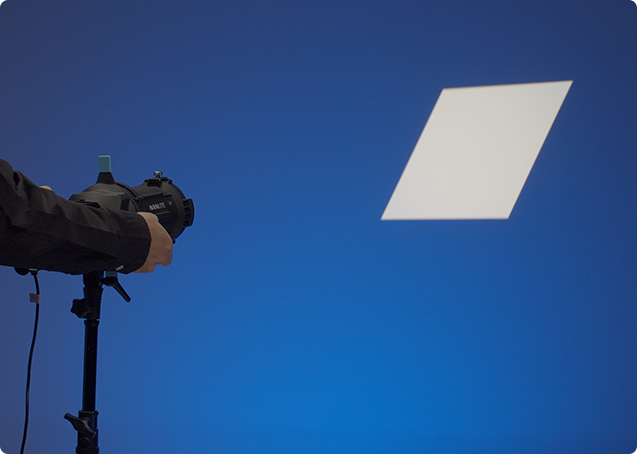

Shutters - Cutting light neatly

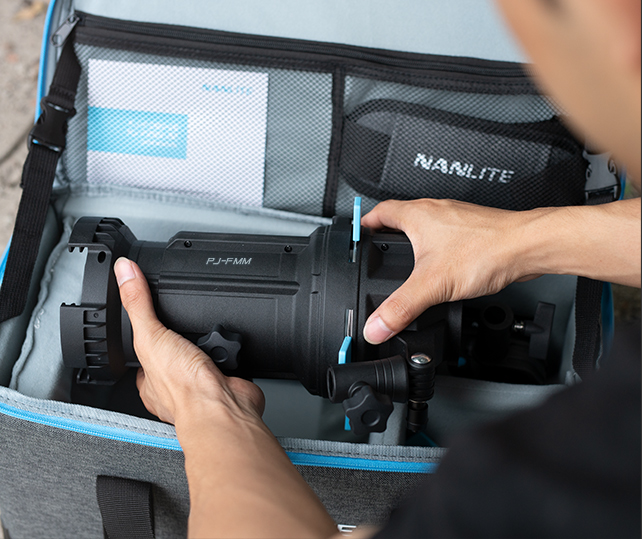

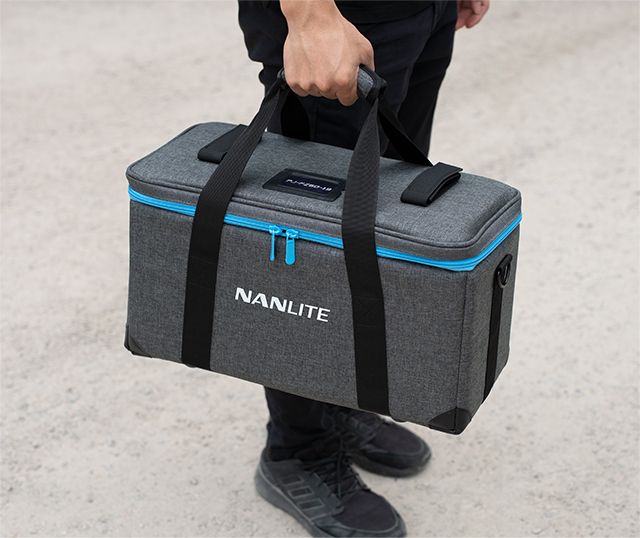

Sturdy Protective Package

The package of the projection attachment is specially designed to ensure that the projection attachment is well-protected while in transit and has space for additional accessories.

Includes

PJ-FMM Projection Attachment without Lens x 1
PJ-FMM-19&36 Lens x 1
GOBO x 4 (each has a different pattern)
GOBO Frame x 1
Gel Frame x 1
Carrying bag x 1
User Manual x 1
M Size Gobo Frame x 1

Technical Data

Model

PJ-FMM-19 / 36

Beam Angle

19°/ 36°

Compatible Product or Mount

Forza 60、Forza 60B

Product Size

Projection Attachment without Lens: 215 × 160 × 235mm/8.46 × 6.30 × 9.25"
19° / 36° Lens: φ117 × 150mm/φ4.61 × 5.91"

Product Weight

Projection Attachment without Lens: 0.89kg/1.96lb
19° Lens: 0.64kg/1.41lb / 36° Lens: 0.69kg/1.52lb

Includes

Projection Attachment without Lens×1, 19° / 36° Lens×1, GOBO×4 (each has a different pattern),
GOBO Frame×1, Gel Frame×1, Carrying bag×1, User Manual×1

Model

PJ-FMM-AI

Product Size

89 × 134 × 8mm/3.5 × 5.28 × 0.31"

Product Weight

0.1kg/0.22lb

Includes

PJ-FMM-AI Adjustable Iris diaphragm ×1

Illumination (lux / fc)

Forza 60+PJ-FMM-19
Distance	1M	3M	5M	7M
5600K	54620 lux / 5074 fc	4229 lux / 393 fc	1441 lux / 134 fc	717 lux / 67 fc
Forza 60B+PJ-FMM-19
Distance	1M	3M	5M	7M
2700K	31700 lux / 2945 fc	2465 lux / 229 fc	837 lux / 78 fc	424 lux / 39 fc
3200K	36190 lux / 3362 fc	2743 lux / 255 fc	907 lux / 84 fc	460 lux / 43 fc
4300K	45210 lux / 4200 fc	3550 lux / 330 fc	1197 lux / 111 fc	597 lux / 55 fc
5600K	46710 lux / 4339 fc	3800 lux / 353 fc	1258 lux / 117 fc	622 lux / 58 fc
6500K	49880 lux / 4634 fc	3848 lux / 357 fc	1308 lux / 122 fc	652 lux / 61 fc

Forza 60+PJ-FMM-36
Distance	1M	3M	5M	7M
5600K	22707 lux / 2109 fc	1776 lux / 165 fc	614 lux / 57 fc	313 lux / 29 fc
Forza 60B+PJ-FMM-36
Distance	1M	3M	5M	7M
2700K	13142 lux / 1221 fc	1027 lux / 95 fc	353 lux / 33 fc	179 lux / 17 fc
3200K	14230 lux / 1322 fc	1111 lux / 103 fc	382 lux / 35 fc	194 lux / 18 fc
4300K	18003 lux / 1672 fc	1398 lux / 130 fc	479 lux / 44 fc	243 lux / 23 fc
5600K	18542 lux / 1723 fc	1444 lux / 134 fc	494 lux / 46 fc	250 lux / 23 fc
6500K	19708 lux / 1831 fc	1533 lux / 142 fc	523 lux / 49 fc	268 lux / 25 fc
